Blunt Top Railings
Blunt top railings
Exceed the standards of BS 1722 pt9

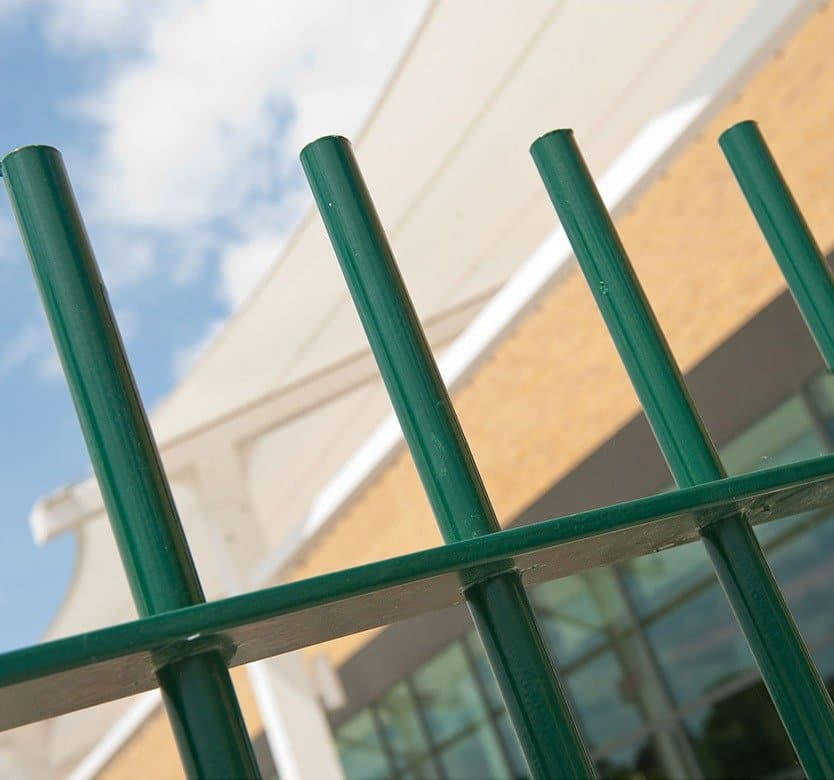

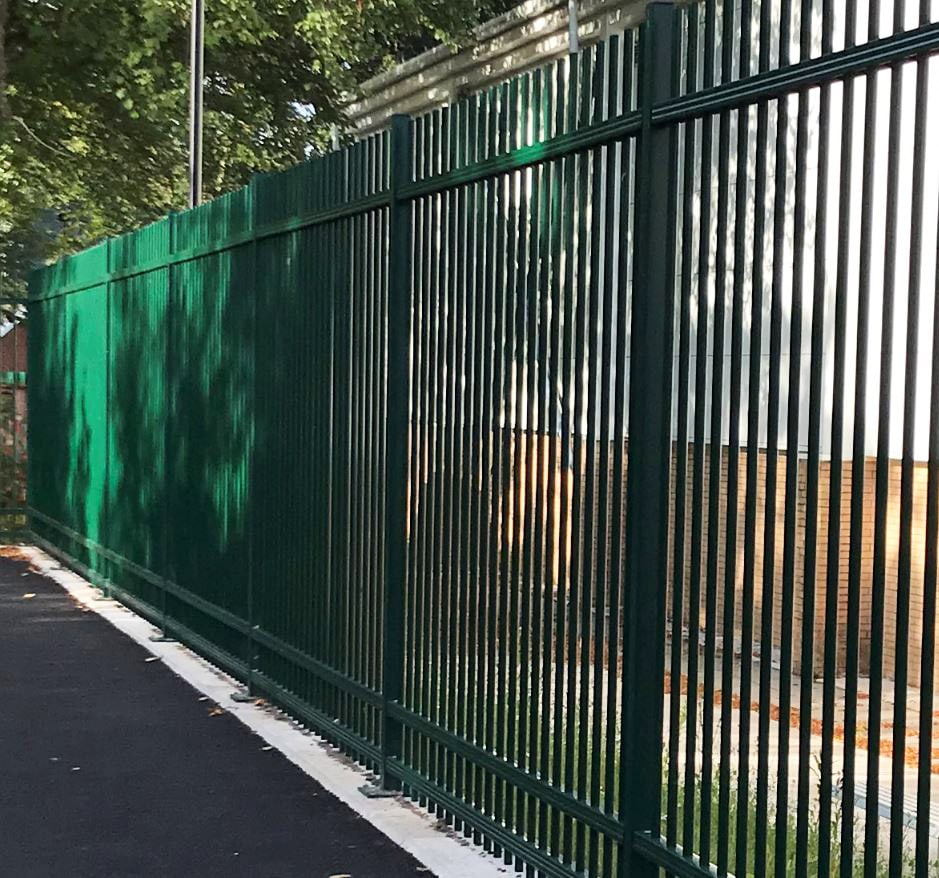

Procter’s traditional solid bar railings are made to exceed the standards of BS 1722 pt9. The height, diameter of the bars and spacing of the horizontal rails are designed to ensure minimum deflection and maximum performance.
The vertical bars can be made round, square bar face forward, or square bar set at an angle of 45 degrees. As standard, we galvanise the railings and posts, but also offer a wide range of polyester powder coated finishes. The height of the railings is typically from 450 mm to 2.4 m, but non-standard heights up to 3.0m can be supplied.
Enquireor call 0800 2944177
Finish – Hot Dip Galvanised to BS EN ISO 1461:2009 and polyester coated to a range of RAL colours
Applications
- Schools
- Offices
- Perimeter
- Parks
- Playgrounds
- Residential
Specification
| Railing height | Post section | Top rail | Bottom rail | Bars |
|---|---|---|---|---|
| 1.0m | 50 x 50 mm SHS | 40 x 10mm | 40 x 10mm | 12mm |
| 1.2m | 50 x 50 mm SHS | 40 x 10mm | 40 x 10mm | 12mm |
| 1.5m | 50 x 50 mm SHS | 40 x 10mm | 40 x 10mm | 16mm |
| 1.8m | 60 x 60 mm SHS | 50 x 10 mm | 50 x 10 mm | 16mm |
| 2.0m | 60 x 60 mm SHS | 50 x 10 mm | 50 x 10 mm | 20mm |
| 2.4m | 80 x 80 mm SHS | 50 x 10 mm | 50 x 10 mm | 20mm |
| 3.0m | 80 x 80 mm SHS | 50 x 10 mm | 50 x 10 mm | 20mm |
Request a quote
or call us on 0800 2944177
